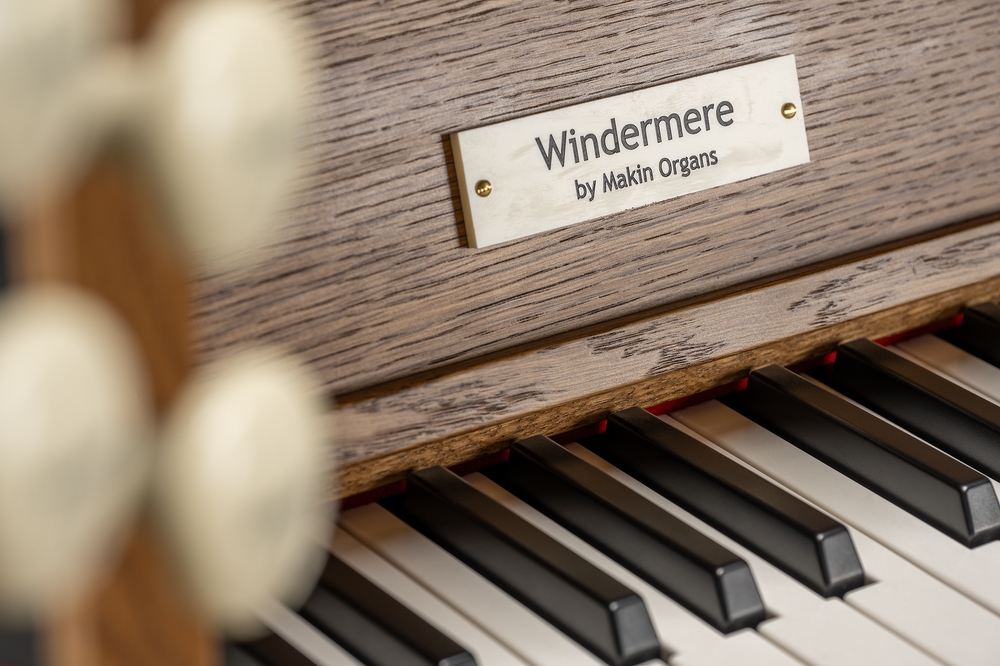

Windermere 3-53D
Windermere 3-53D
The Windermere is the ideal three manual English organ. With a sixteen-channel audio system (14.2 configuration) it delivers on its promise even in the largest of buildings.
This instrument has everything: lush swell strings, flutes of all timbres, luxurious diapason choruses, mutations galore and thrilling solo reeds. The foundations of the sound are provided by a pedal division that delivers a punch at all pitches. Hearing is believing.
Expect nothing but the best with advanced features that come as standard on any Makin organ.
Sound and Amplification
The combination of a single English intonation, using real-time live MultiSamples with one sample for each note of every stop, sixteen channels of amplification (14.2) and sixteen external speakers we bring the unsurpassed realism of the true pipe organ sound to you.

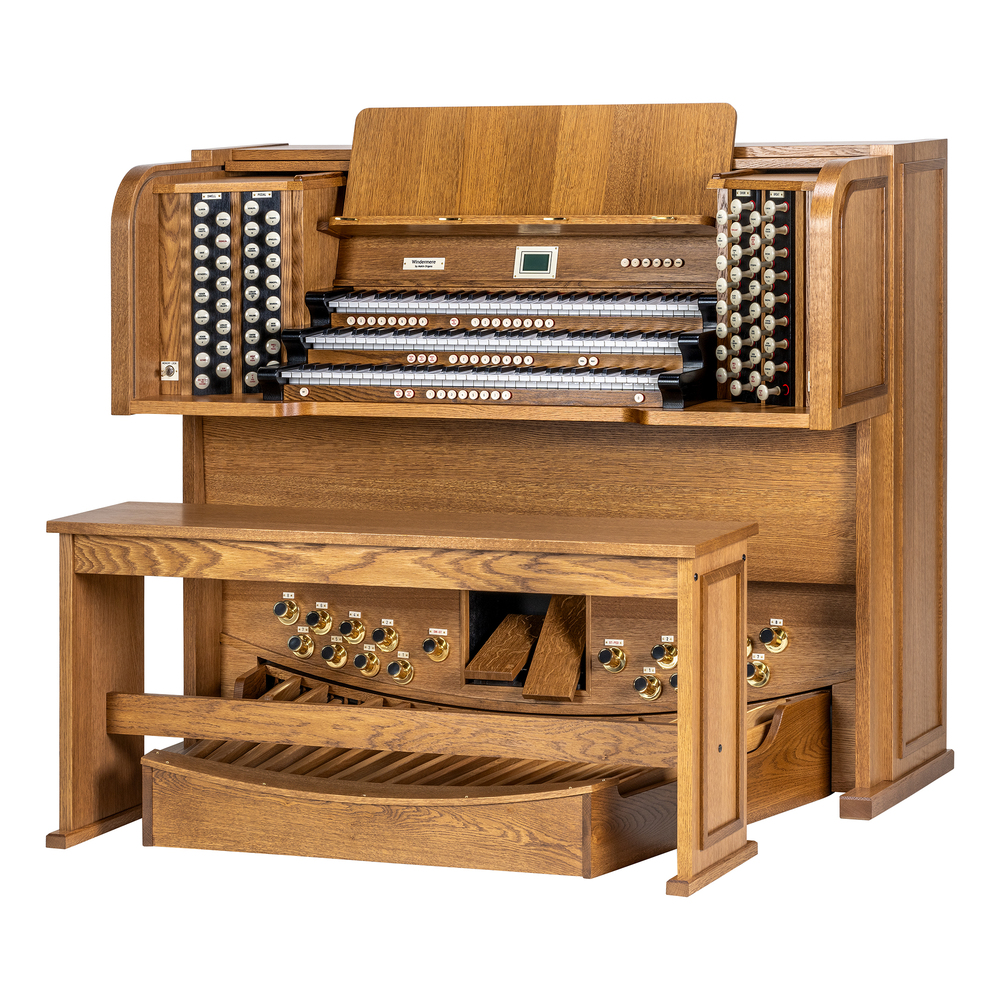

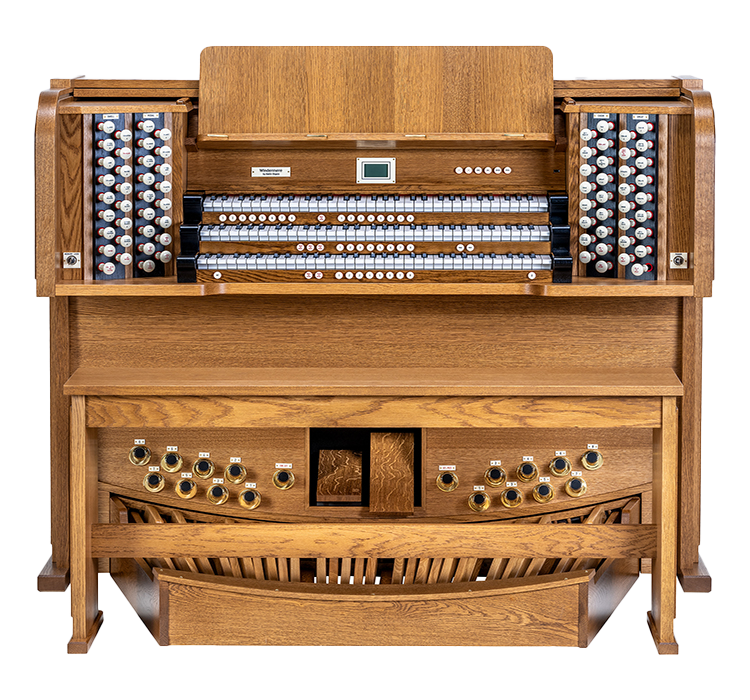

Consoles

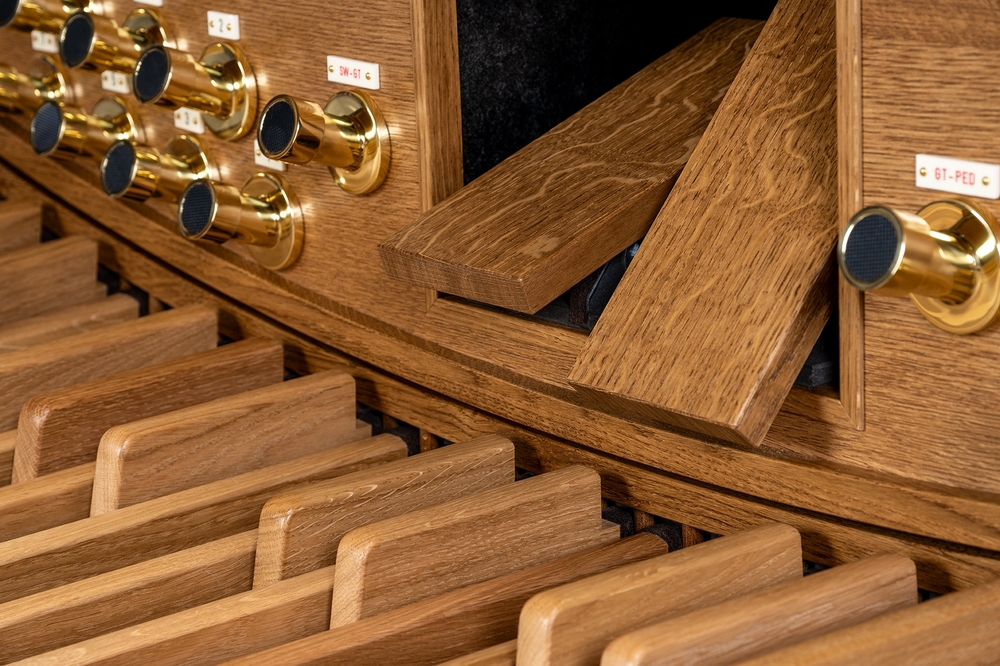

Our consoles are made from slow grown real oak and real oak veneer and are available in many colours. They feature sixty-one note high quality tracker touch acrylic based keyboards (with wood core keyboards optional) and a full size thirty-two note AGO pedal board with all pedals made from solid wood. Our swell pedals are user definable. Our sturdy organ benches can come complete with music storage space or can be height adjustable. The finishing touch is that our music desks have brass clips to hold your sheet music copy in place.

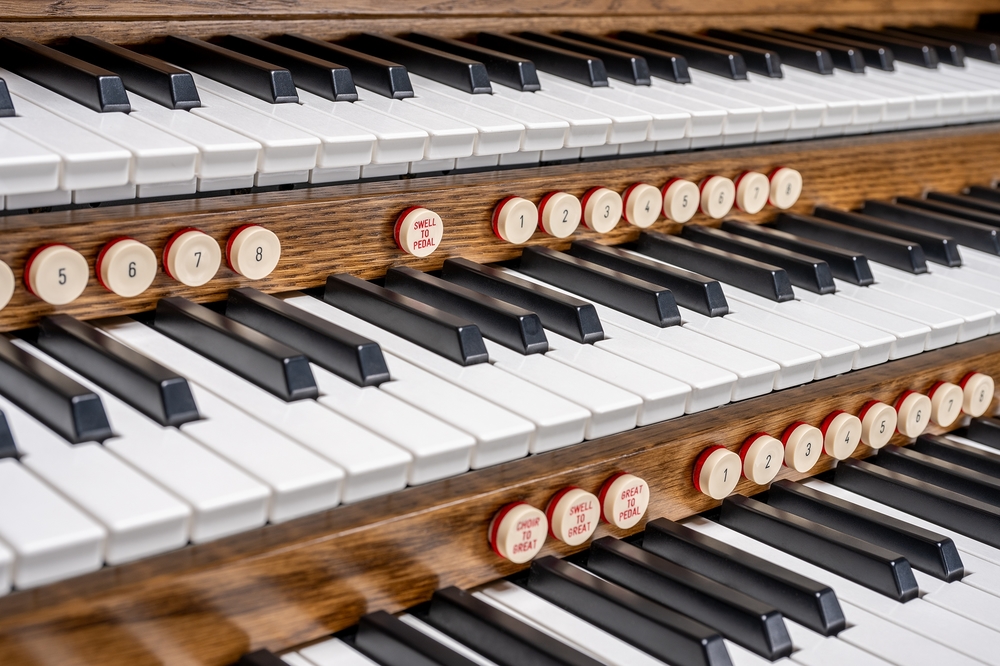

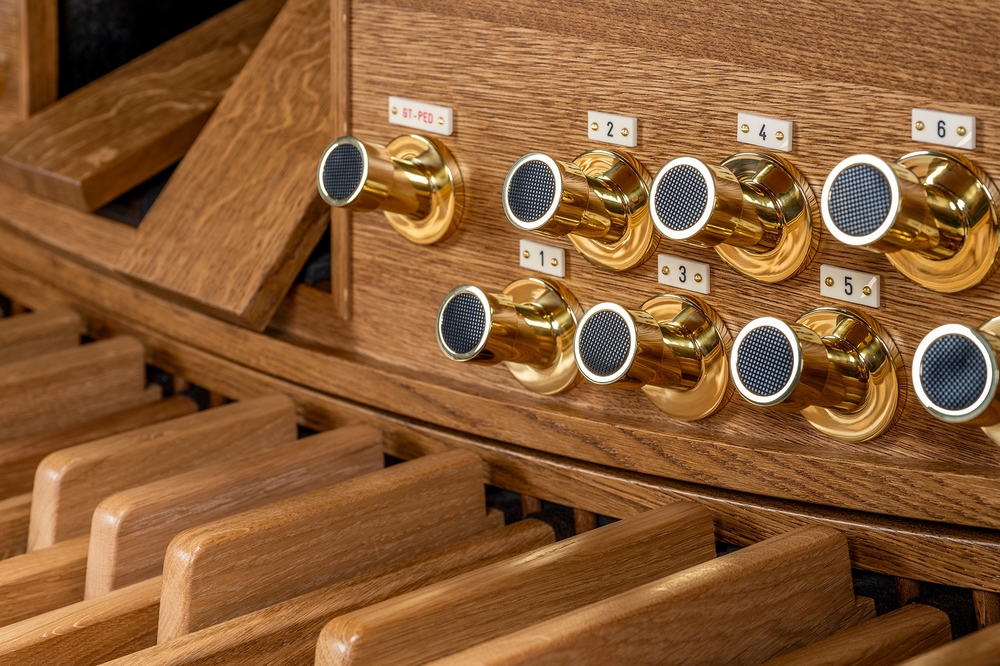

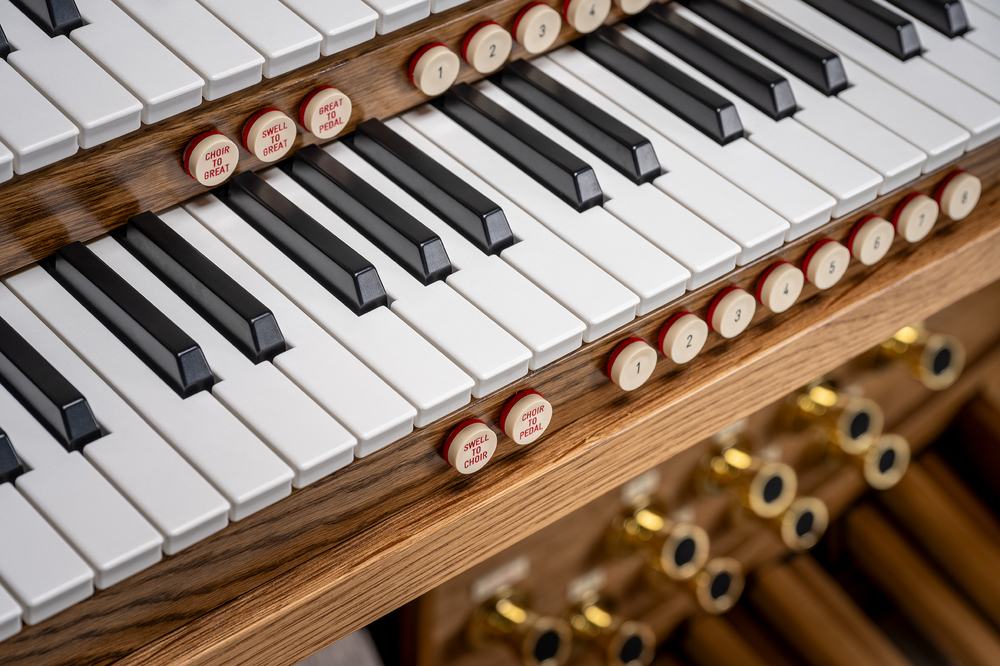

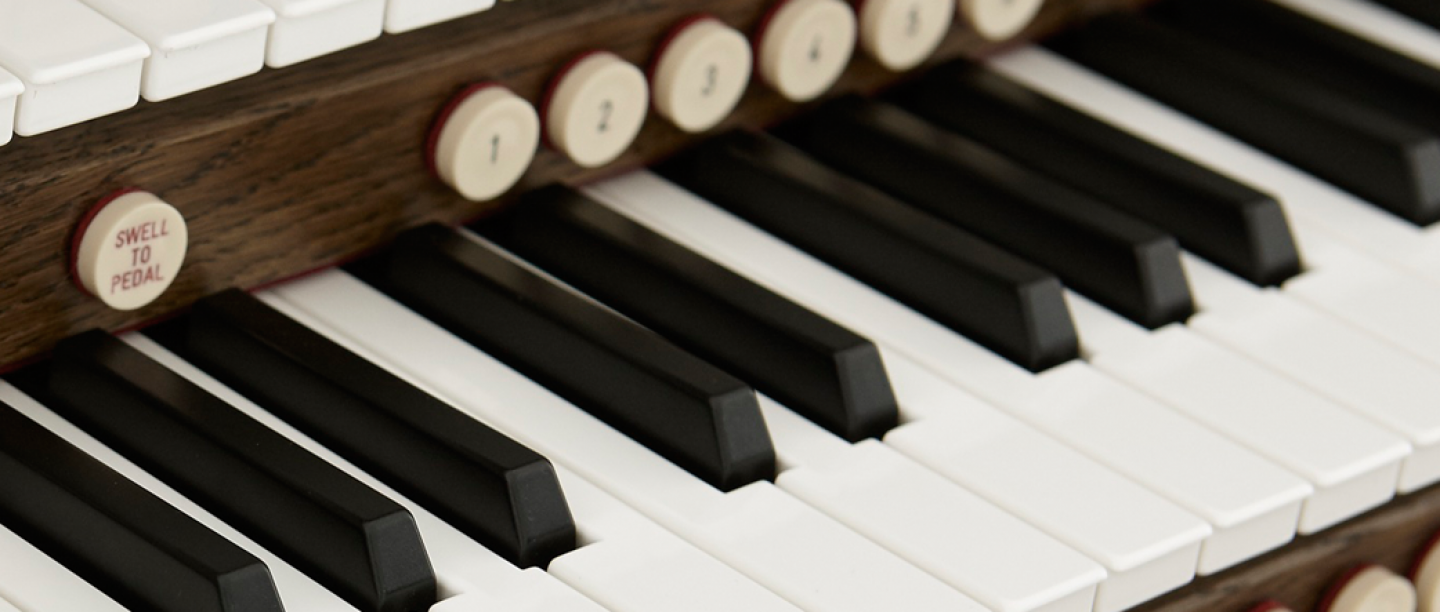

Pistons & Toe Studs
The organ comes with a full set of traditional English divisional and general pistons and toe studs with two hundred and fifty piston memory. In addition, there is a thumb piston for each interdivisional coupler. All of our organs come with the Great and Pedal Combinations Coupled' function which many English organists regard as indispensable.
Other Functions

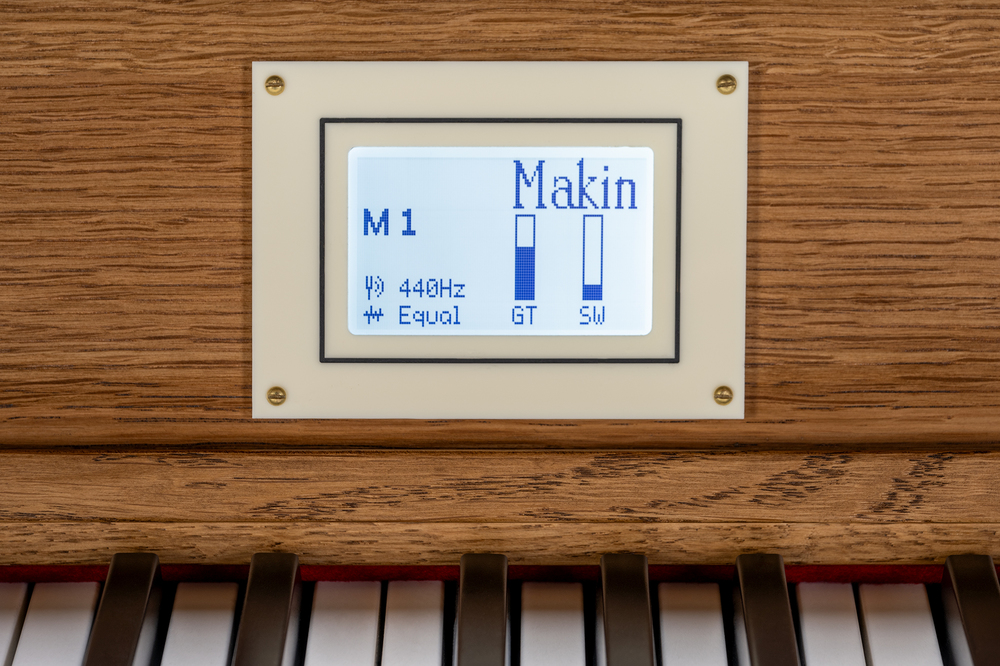

Our easy-to-read screen displays vital information, such as the position of the swell pedal and piston memory position. There is a simple menu system to alter volume, select temperaments, adjust tuning, transposition, reverberation and other functions. MIDI, auxiliary in/out sockets and headphone jack are all provided.
Finally all of our organs come with a manual bass function which adds the pedal notes to help pianists and reluctant organists accompany hymns more successfully.
Dimensions
Height (excluding music desk) 134cm
Width 164cm
Depth 75cm
Depth with Pedalboard 121cm
| Pedal | |
| Contra Violone | 32' |
| Open Wood | 16' |
| Violone | 16' |
| Bourdon | 16' |
| Lieblich Bourdon (Sw) | 16' |
| Principal | 8' |
| Bass Flute | 8' |
| Choral Bass | 4' |
| Contra Trombone | 32' |
| Ophicleide | 16' |
| Trombone | 16' |
| Trumpet | 8' |
| Schalmei | 4' |
| Choir to Pedal | |
| Great to Pedal | |
| Swell to Pedal | |
| Great & Pedal Combs Coupled | |
| Choir (enclosed) | |
| Stopped Diapason | 8' |
| Viol d Orchestra | 8' |
| Viole Celeste | 8' |
| Rohr Flute | 4' |
| Nazard | 2 2/3' |
| Blockflute | 2' |
| Tierce | 1 3/5' |
| Larigot | 1 1/3' |
| Sifflet | 1' |
| Corno di Bassetto | 8' |
| Vox Humana | 8' |
| Tremulant | |
| Solo Trumpet | 8' |
| Tuba | 8' |
| Sub Octave | |
| Octave | |
| Swell to Choir | |
| Great | |
| Bourdon | 16' |
| Open Diapason I | 8' |
| Open Diapason II | 8' |
| Hohl Flute | 8' |
| Stopped Diapason | 8' |
| Gamba | 8' |
| Principal | 4' |
| Harmonic Flute | 4' |
| Twelfth | 2 2/3' |
| Fifteenth | 2' |
| Mixture (19.22.26.29) | IV |
| Great Reeds on Choir | |
| Contra Posaune | 16' |
| Posaune | 8' |
| Clarion | 4' |
| Choir to Great | |
| Swell to Great | |
| Swell (enclosed) | |
| Lieblich Bourdon | 16' |
| Geigen Diapason | 8' |
| Lieblich Gedackt | 8' |
| Salicional | 8' |
| Voix Celeste | 8' |
| Geigen Principal | 4' |
| Lieblich Flute | 4' |
| Fifteenth | 2' |
| Mixture (15.19.22.26) | IV |
| Oboe | 8' |
| Tremulant | |
| Contra Fagotto | 16' |
| Cornopean | 8' |
| Clarion | 4' |
| Sub Octave | |
| Octave | |
| Gen on Swell Toe Pistons | |
